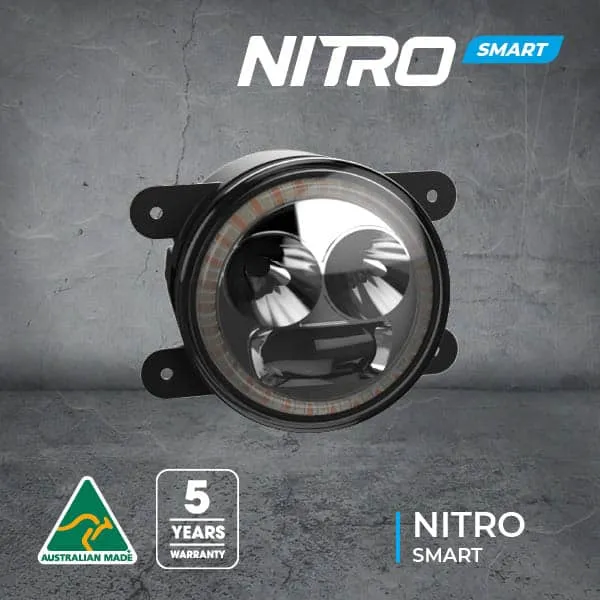

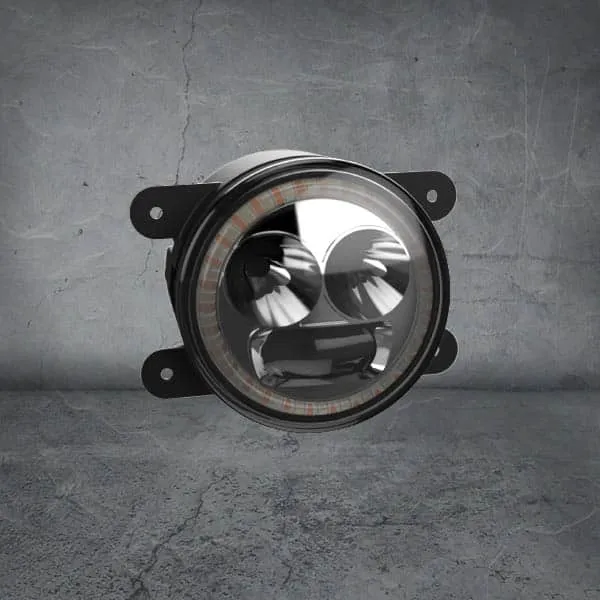

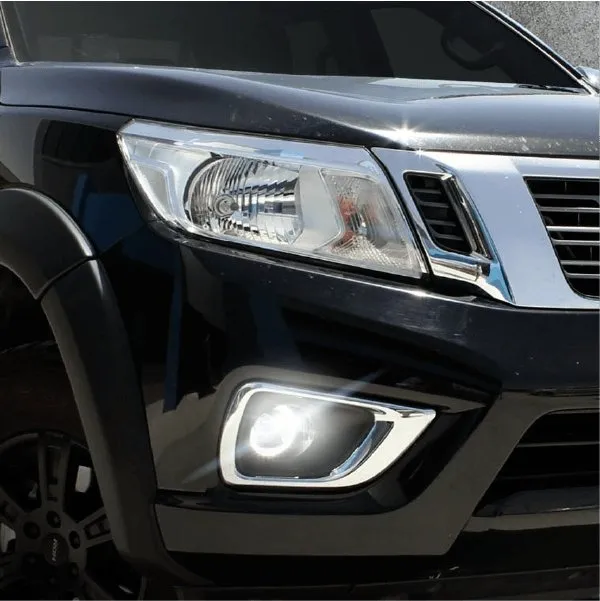

The Nitro Smart has been designed to integrate with bullbars and bumpers to provide significantly more light output without compromising compliance or the OE look of your vehicle.
The module delivers 1 lux at 500m from the driving light function, in addition to the other functions of fog, DRL and indicator.
Having external adjustment means the units can be tweaked to ensure you get optimum performance with any load.
Wiring harness
An optional generic wiring harness is available. Please note this is generic and not vehicle specific. Although it makes installation simpler we recommend that all Nitro products are installed by a qualified electrician.
Beam Patterns
4000k vs 5700k Colour Temperature
[baslider name=”ColourTemp”]
Nitro Smart Hi Beam/Low Beam comparison
.slider-info-23656.bafg-slider-info .bafg-slider-title { font-size: 22px; } .slider-info-23656.bafg-slider-info .bafg-slider-description { } .slider-info-23656.bafg-slider-info .bafg_slider_readmore_button { text-align: center; } .slider-info-23656.bafg-slider-info .bafg_slider_readmore_button:hover { }
Wiring Diagram
| SPECIFICATIONS | Nitro SMART |
| Light Source | LED |
| Voltage | 9V-32V |
| Current Draw | 4.4A @ 13.5V |
| Operating Temperature | -40°C to 80°C |
| Waterproof rating | IP67 |
| Connector Type | 8 PIN JST |
| Housing | Aluminium |
| Lens Construction | Polycarbonate |
| Carrier | GFN |
| Colour Temperature | 5700K |
| Lifespan | 50’000 Hours |

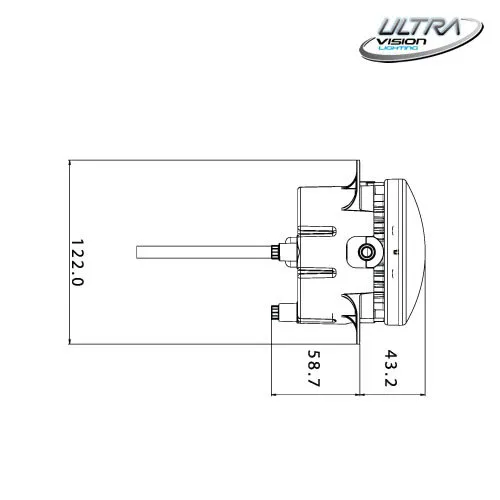

| Diameter / Dimensions | 100mm |
| Net Weight | 800g |
| Mounting Suitable | 4 Point |
| Warranty | 5 Years |
